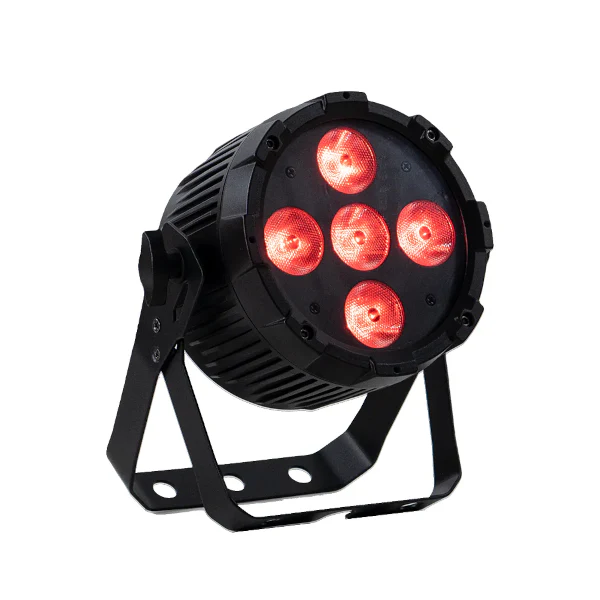

The PAR5X8A is a 5-LED 4-in-1 fixture with RGBA LEDs.

Photometrics

• Light Source: 5 x 8W RGBA LEDs
• Beam Angle: 22° (Optional: 55°)
• Output: 1,350 lux @ 2m RGBA full on
• PWM: 2,940Hz
• LED Life: 50,000 hours

Effects

• Dimming: 8-bit Dimming Control / 3 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltages: 100~240V AC,50/60 Hz, 40W

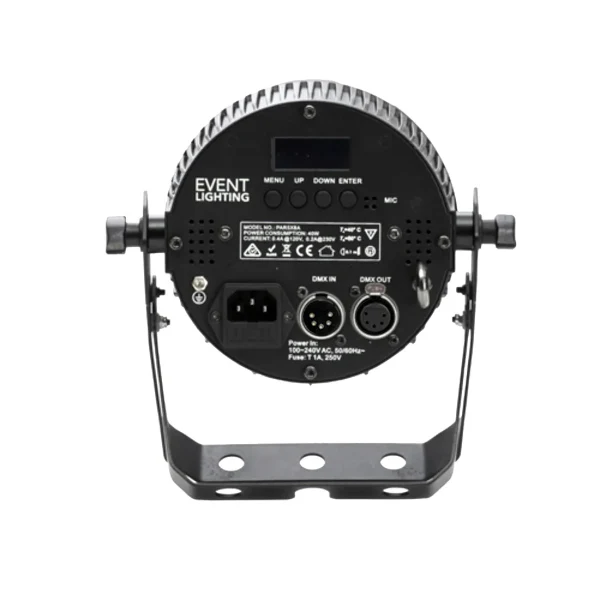

• Power Connection: IEC in

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channel Mode: 2 / 3 / 4 / 6 / 10
• Control Interface: 5-pin XLR
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Die-cast aluminium housing, matte black finish
• Cooling: Fanless Cooling
• Dimension: 207 x 227 x 120mm
• Net Weight: 1.9kg
