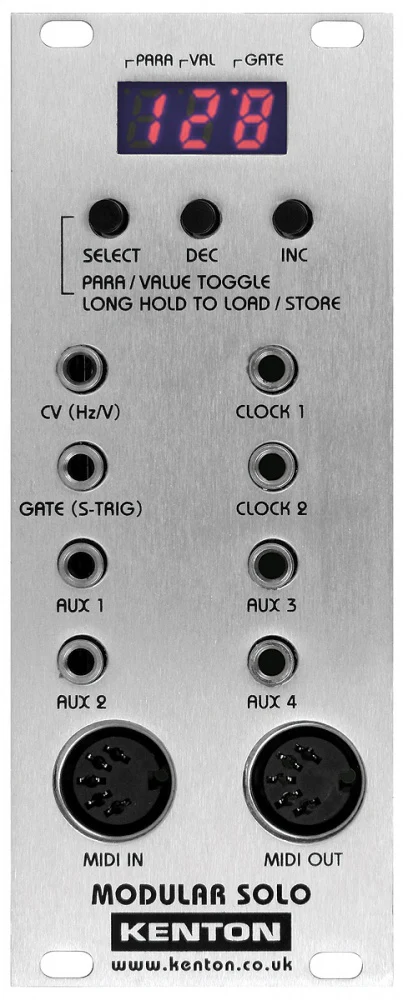

Kenton’s Modular Solo is a high-end MIDI/CV converter with lots of additional functions. The module looks like a Eurorack version of the Pro Solo. However, it offers some nice additional features like clock divisors and more flexible auxiliary outputs.

Key Features:

• 1 V / octave, 1,2 V / octave and Hz / V modes
• CV, gate, aux and clock outputs
• A 16 bit D/A converter guarantees rock-steady pitches
• CV and gate signals can be fed to the Eurorack system bus
• MIDI-DIN input and output respectively thru channel
• Selectable MIDI channel
• The MIDI output can be used for DIN Sync 24 equipment
• Fine tune and scale parameters editable via software
• Transpose option (+/- 12 semitones)
• Editable pitch bend range
• Gate output can emit V-trig or S-trig signals
• Multiple and single trigger modes
• Editable note priority (low / high / last)
• Portamento with fixed rate and fixed time modes
• Auto Portamento mode
• Four programmable aux outputs
• Two independent clock outputs (5 V or 10 V)
• LFO with nine waveforms and routing options (Destinations: pitch, aux output)
• Separate controllers for LFO to CV and LFO to aux
• LFO offers sync and reset options
• Clock outputs can work with 1 to 12, 24 or 48 PPQ
• Setups are stored in non-volatile memory
• MIDI monitor mode
• All parameters are controllable in real-time via SysEx
